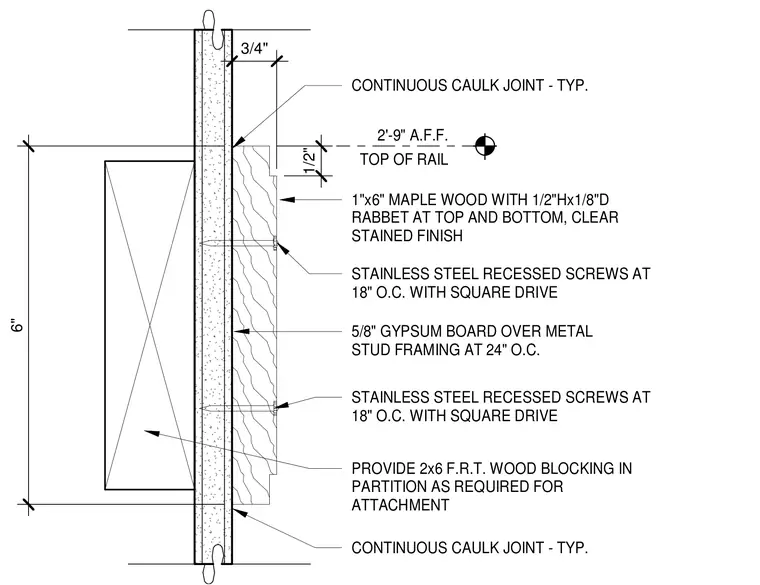

A 1x6 maple wood chair rail with a clear stained finish features a one-half-inch high by one-eighth-inch deep rabbet at the top and bottom. The rail is secured to five-eighths-inch gypsum board over metal stud framing spaced at twenty-four inches on center using stainless steel recessed screws with square drives placed at eighteen inches on center. A two-by-six fire-retardant treated wood blocking is provided within the partition as required for attachment. Continuous caulk joints are applied typically at the top and bottom of the maple rail.
2'-9" A.F.F. TOP OF RAIL CONTINUOUS CAULK JOINT - TYP. 1"x6" MAPLE WOOD WITH 1/2"Hx1/8"D RABBET AT TOP AND BOTTOM, CLEAR STAINED FINISH STAINLESS STEEL RECESSED SCREWS AT 18" O.C. WITH SQUARE DRIVE 5/8" GYPSUM BOARD OVER METAL STUD FRAMING AT 24" O.C. STAINLESS STEEL RECESSED SCREWS AT 18" O.C. WITH SQUARE DRIVE PROVIDE 2x6 F.R.T. WOOD BLOCKING IN PARTITION AS REQUIRED FOR ATTACHMENT CONTINUOUS CAULK JOINT - TYP. 6" 1/2" 3/4"
