Architectural · A-CFVYS

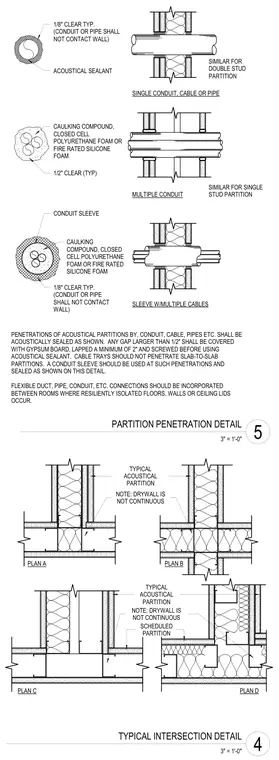

Partition Penetration Detail

Materials

Elements

Walls Partitions Ceilings Floors / Slabs Connections / Plates Roof / Floor Openings

About this detail

Conduits, cables, and pipes penetrating acoustical partitions are sealed using acoustical sealant, caulking compound, closed-cell polyurethane foam, or fire-rated silicone foam. Gaps larger than one-half inch are covered with gypsum board, lapped a minimum of two inches, and screwed prior to applying acoustical sealant. Conduit sleeves are provided for multiple cables and conduit or pipe must maintain a one-eighth inch clear space to avoid direct contact with the wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
