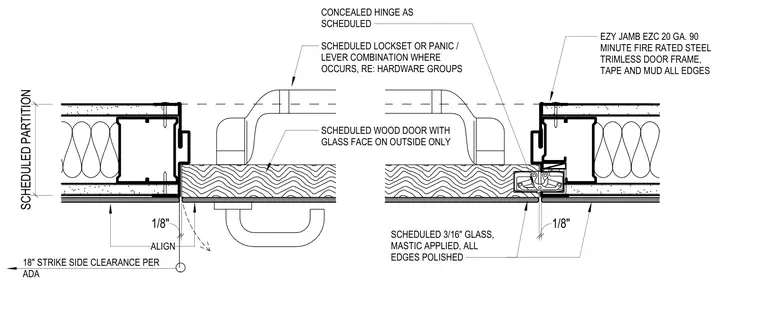

The assembly features a twenty-gauge ninety-minute fire-rated steel trimless door frame with taped and mudded concealed edges. A scheduled wood door with a glass face on the outside only is hung with a concealed hinge. A scheduled lockset or panic lever combination is installed per the hardware groups. The door incorporates three-sixteenth-inch glass with mastic applied and polished edges, set with a one-eighth-inch clearance and alignment.
EZY JAMB EZC 20 GA. 90 MINUTE FIRE RATED STEEL TRIMLESS DOOR FRAME, TAPE AND MUD ALL EDGES CONCEALED HINGE AS SCHEDULED 18" STRIKE SIDE CLEARANCE PER ADA . SCHEDULED LOCKSET OR PANIC / LEVER COMBINATION WHERE OCCURS, RE: HARDWARE GROUPS SCHEDULED WOOD DOOR WITH GLASS FACE ON OUTSIDE ONLY 1/8" 1/8" SCHEDULED 3/16" GLASS, MASTIC APPLIED, ALL EDGES POLISHED SCHEDULED PARTITION ALIGN
