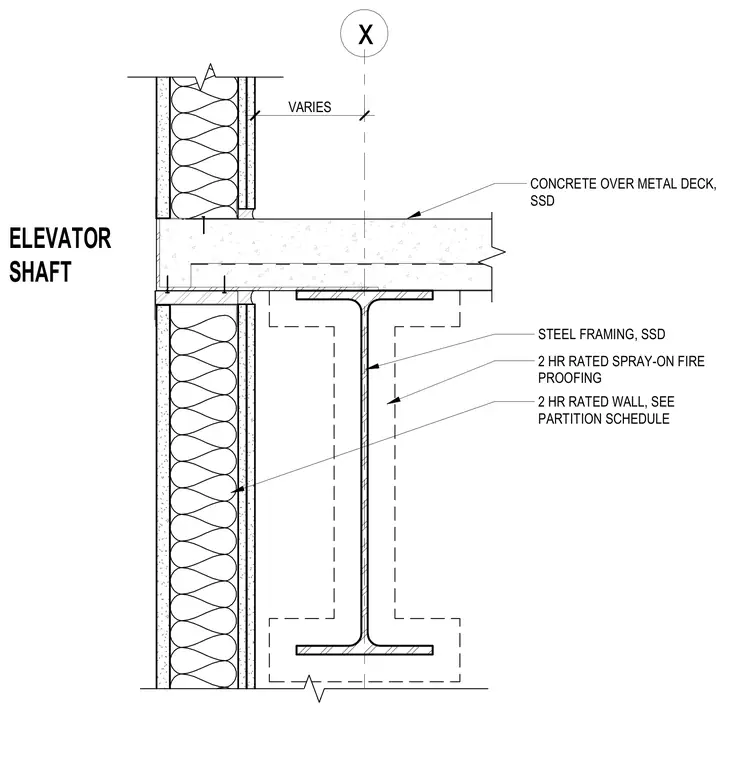

A two-hour rated wall partition assembly meets a structural steel framing member supporting a concrete over metal deck floor slab. The steel column and surrounding framing receive two-hour rated spray-on fireproofing. The adjacent vertical shaft partition is constructed to maintain a two-hour fire rating per the partition schedule, maintaining a variable clearance space relative to the structural grid line X.
STEEL FRAMING, SSD 2 HR RATED SPRAY-ON FIRE PROOFING 2 HR RATED WALL, SEE PARTITION SCHEDULE CONCRETE OVER METAL DECK, SSD ELEVATOR SHAFT x VARIES
