Architectural · A-CF6XB

Cable Railing through Column

Materials

Reinforced Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Railings / Guards Floors / Slabs Site / Paving Anchors / Embeds Reinforcing

Connections

Embed Plate

About this detail

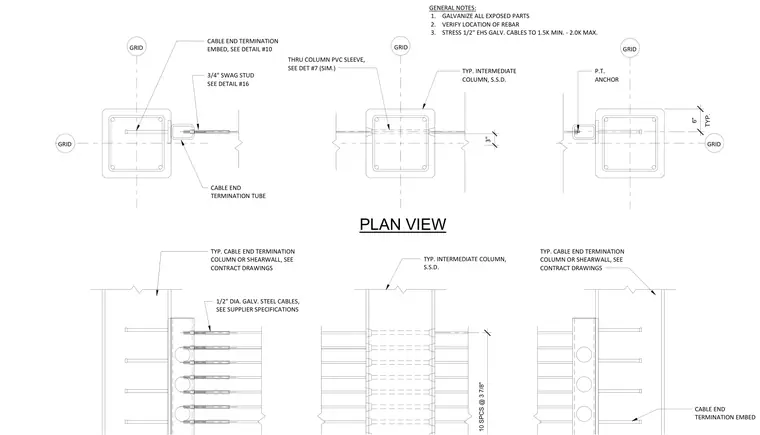

A cable railing system passes through and terminates at reinforced concrete columns or shear walls using one-half inch diameter extra-high strength galvanized steel cables spaced across ten intervals at three and seven-eighths inches. Cable ends feature three-quarter inch swaged studs, tensioning post-tension anchors, and termination tubes anchored to embeds. Intermediate columns incorporate through-column PVC sleeves for continuous cable runs. All exposed metal parts are galvanized, and cables are stressed to between 1.5 and 2.0 kips.
