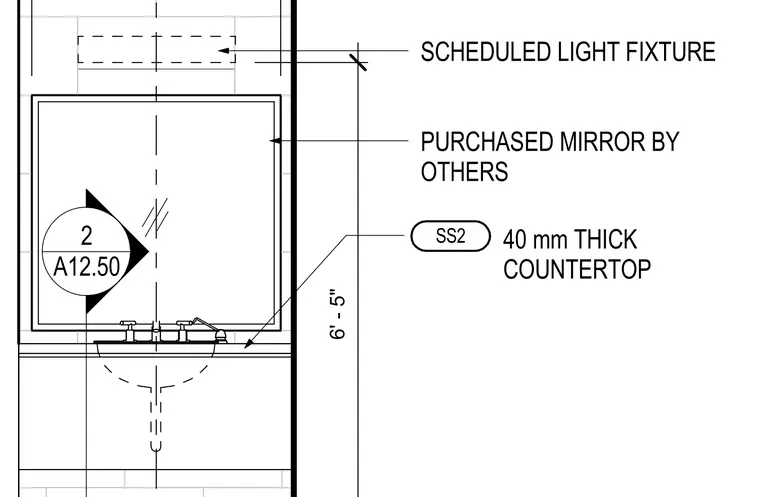

A forty millimeter thick countertop supports an undermount sink and faucet assembly beneath a wall-mounted purchased mirror provided by others. A scheduled light fixture is positioned above the mirror with a vertical clearance dimension of six feet five inches measured from the finished countertop surface. A reference detail bubble points to sheet A12.50 for further coordination.
40 mm THICK COUNTERTOP PURCHASED MIRROR BY OTHERS SCHEDULED LIGHT FIXTURE SS2 2 A12.50 6' - 5"
