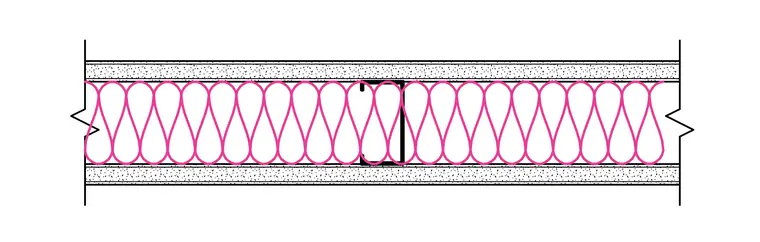

This interior partition detail shows a steel stud framed wall assembly with sound attenuation batt insulation installed in the cavity. Both sides of the steel stud are faced with double layers of gypsum board secured to the framing. The assembly provides a standard interior partition solution for commercial or institutional buildings.
