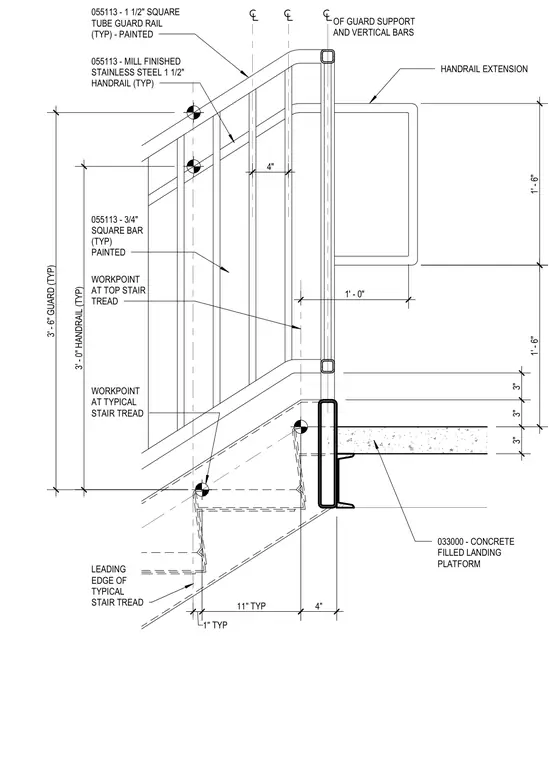

A stair guardrail and handrail extension anchors into a concrete-filled landing platform. The assembly features a painted 1 1/2-inch square tube guard rail and mill-finished stainless steel 1 1/2-inch handrail supported by 3/4-inch square vertical bars. The guard stands at a typical height of 3 feet 6 inches with the handrail positioned at 3 feet above the stair tread leading edge. Workpoints are designated at the typical stair tread and top stair tread to establish precise geometry for the steel framing and guard supports.
033000 - CONCRETE FILLED LANDING PLATFORM HANDRAIL EXTENSION OF GUARD SUPPORT AND VERTICAL BARS 055113 - 1 1/2" SQUARE TUBE GUARD RAIL (TYP) - PAINTED 055113 - 3/4" SQUARE BAR (TYP) PAINTED WORKPOINT AT TOP STAIR TREAD WORKPOINT AT TYPICAL STAIR TREAD LEADING EDGE OF TYPICAL STAIR TREAD 4" 3' - 0" HANDRAIL (TYP) 3' - 6" GUARD (TYP) 1' - 6" 1' - 6" 1' - 0" 055113 - MILL FINISHED STAINLESS STEEL 1 1/2" HANDRAIL (TYP) 3" 3" 3" 4" 1" TYP 11" TYP
