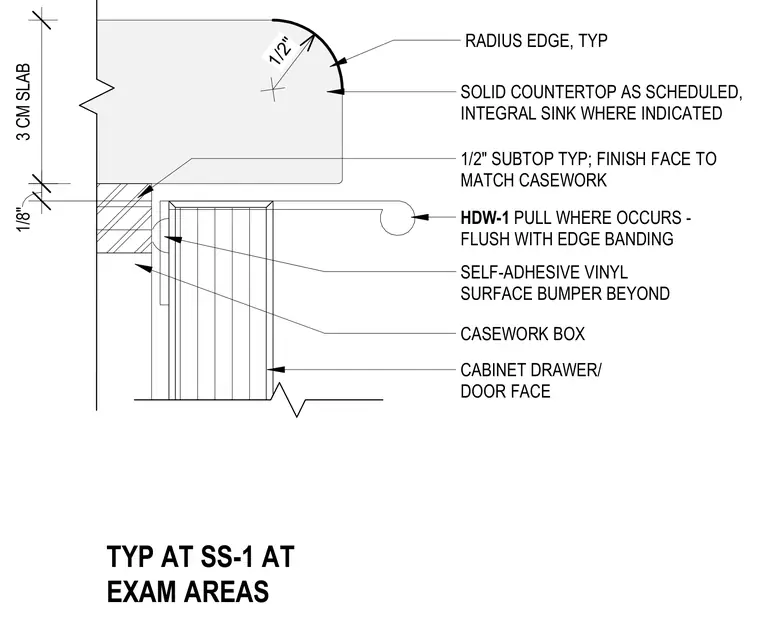

A 3-centimeter solid surface countertop with a typical radius edge rests on a half-inch subtop that matches the casework finish face. The casework box sits below with a cabinet drawer or door face, featuring a self-adhesive vinyl surface bumper beyond the door face. An HDW-1 pull occurs where indicated, positioned flush with the edge banding.
CASEWORK BOX SOLID COUNTERTOP AS SCHEDULED, INTEGRAL SINK WHERE INDICATED RADIUS EDGE, TYP SELF-ADHESIVE VINYL SURFACE BUMPER BEYOND CABINET DRAWER/ DOOR FACE 1/2" SUBTOP TYP; FINISH FACE TO MATCH CASEWORK 1/8" HDW-1 PULL WHERE OCCURS - FLUSH WITH EDGE BANDING TYP AT SS-1 AT EXAM AREAS 3 CM SLAB 1/2"
