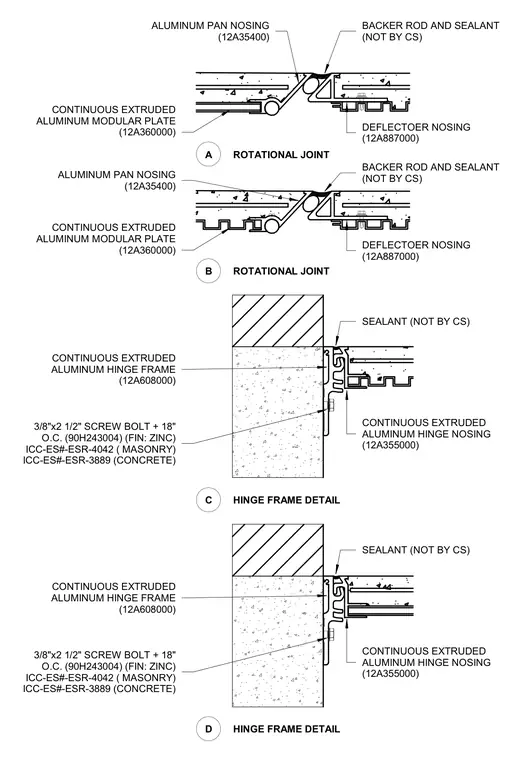

These architectural details illustrate aluminum stair expansion joints and hinge frame connections anchored to concrete or masonry substrates. The rotational joint assemblies incorporate an aluminum pan nosing, a continuous extruded aluminum modular plate, a deflector nosing, and a backer rod with sealant provided by others. The hinge frame details feature a continuous extruded aluminum hinge frame secured to the substrate with three-eighths-inch by two-and-one-half-inch zinc-finished screw bolts spaced at eighteen inches on center. A continuous extruded aluminum hinge nosing and exterior sealant complete the junction.
A ROTATIONAL JOINT B ROTATIONAL JOINT C HINGE FRAME DETAIL D HINGE FRAME DETAIL BACKER ROD AND SEALANT (NOT BY CS) ALUMINUM PAN NOSING (12A35400) CONTINUOUS EXTRUDED ALUMINUM MODULAR PLATE (12A360000) DEFLECTOER NOSING (12A887000) BACKER ROD AND SEALANT (NOT BY CS) ALUMINUM PAN NOSING (12A35400) CONTINUOUS EXTRUDED ALUMINUM MODULAR PLATE (12A360000) DEFLECTOER NOSING (12A887000) SEALANT (NOT BY CS) CONTINUOUS EXTRUDED ALUMINUM HINGE NOSING (12A355000) CONTINUOUS EXTRUDED ALUMINUM HINGE FRAME (12A608000) 3/8"x2 1/2" SCREW BOLT + 18" O.C. (90H243004) (FIN: ZINC) ICC-ES#-ESR-4042 ( MASONRY) ICC-ES#-ESR-3889 (CONCRETE) SEALANT (NOT BY CS) CONTINUOUS EXTRUDED ALUMINUM HINGE NOSING (12A355000) CONTINUOUS EXTRUDED ALUMINUM HINGE FRAME (12A608000) 3/8"x2 1/2" SCREW BOLT + 18" O.C. (90H243004) (FIN: ZINC) ICC-ES#-ESR-4042 ( MASONRY) ICC-ES#-ESR-3889 (CONCRETE)
