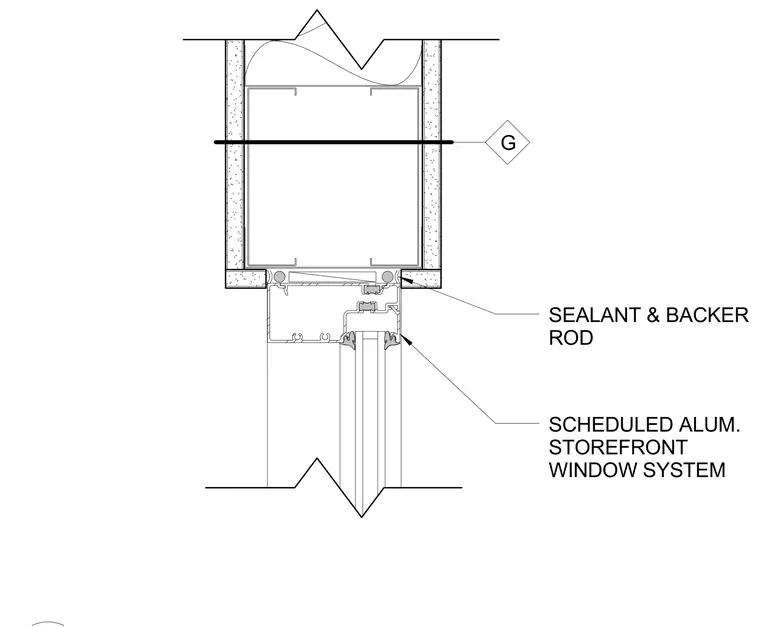

An aluminum storefront window system is installed beneath a framed stud wall opening. Joint sealant and backer rod seal the perimeter gap between the storefront head profile and the adjacent wall finishes.
SCHEDULED ALUM. STOREFRONT WINDOW SYSTEM SEALANT & BACKER ROD G
