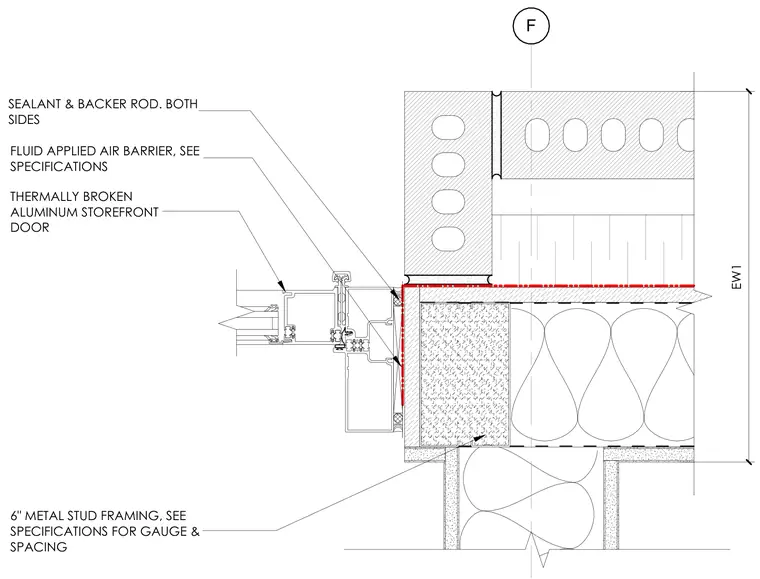

A thermally broken aluminum storefront door frame sets against a six-inch cold-formed metal stud framing wall with exterior brick veneer. A continuous fluid-applied air barrier coats both sides of the backup wall. Sealant and backer rod fill the joint between the storefront frame and the masonry return.
F EW1 6" METAL STUD FRAMING, SEE SPECIFICATIONS FOR GAUGE & SPACING SEALANT & BACKER ROD. BOTH SIDES FLUID APPLIED AIR BARRIER, SEE SPECIFICATIONS THERMALLY BROKEN ALUMINUM STOREFRONT DOOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
