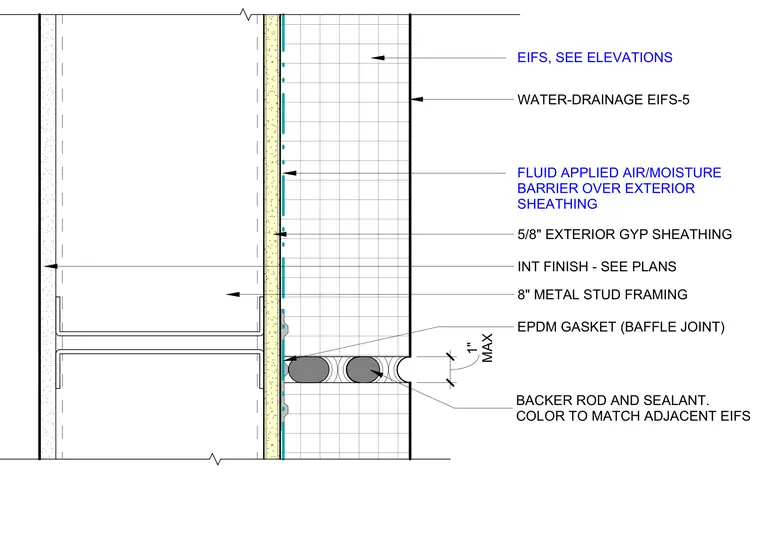

An exterior wall assembly features eight-inch metal stud framing faced with five-eighths-inch exterior gypsum sheathing and a fluid-applied air and moisture barrier. The exterior finish consists of water-drainage EIFS with a color-matched sealant and backer rod. An EPDM gasket serves as a baffle joint at the jamb condition, with a maximum joint width of one inch. Interior finishes are specified per the architectural floor plans.
INT FINISH - SEE PLANS 8" METAL STUD FRAMING 5/8" EXTERIOR GYP SHEATHING WATER-DRAINAGE EIFS-5 EPDM GASKET (BAFFLE JOINT) MAX 1" BACKER ROD AND SEALANT. COLOR TO MATCH ADJACENT EIFS EIFS, SEE ELEVATIONS FLUID APPLIED AIR/MOISTURE BARRIER OVER EXTERIOR SHEATHING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
