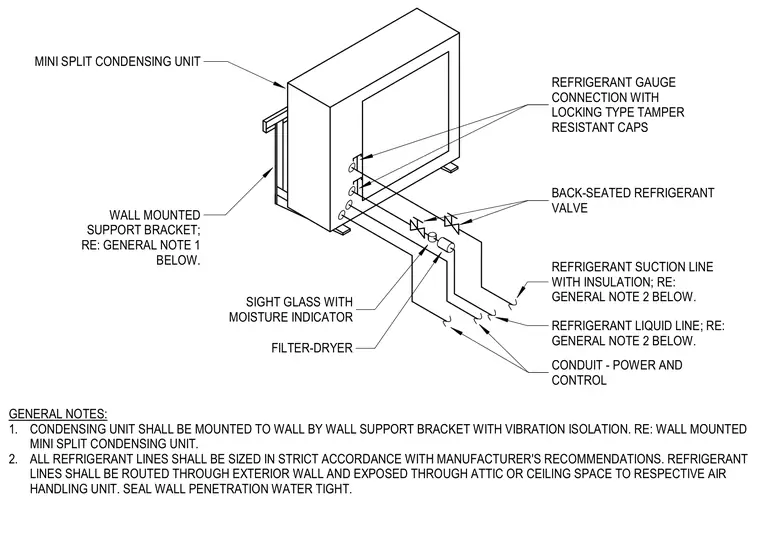

A mini split condensing unit is mounted to the exterior wall using a dedicated wall support bracket equipped with vibration isolation. Refrigerant lines connect to back-seated refrigerant valves and include refrigerant gauge connections with locking type tamper resistant caps. The assembly incorporates a filter-dryer and a sight glass with a moisture indicator on the liquid line. Insulated refrigerant suction lines and liquid lines route through the exterior wall into the attic or ceiling space to the respective air handling unit, with wall penetrations sealed water-tight. Separate conduit provides power and control connections to the unit.
WALL MOUNTED SUPPORT BRACKET; RE: GENERAL NOTE 1 BELOW. MINI SPLIT CONDENSING UNIT GENERAL NOTES: 1. CONDENSING UNIT SHALL BE MOUNTED TO WALL BY WALL SUPPORT BRACKET WITH VIBRATION ISOLATION. RE: WALL MOUNTED MINI SPLIT CONDENSING UNIT. 2. ALL REFRIGERANT LINES SHALL BE SIZED IN STRICT ACCORDANCE WITH MANUFACTURER'S RECOMMENDATIONS. REFRIGERANT LINES SHALL BE ROUTED THROUGH EXTERIOR WALL AND EXPOSED THROUGH ATTIC OR CEILING SPACE TO RESPECTIVE AIR HANDLING UNIT. SEAL WALL PENETRATION WATER TIGHT. REFRIGERANT GAUGE CONNECTION WITH LOCKING TYPE TAMPER RESISTANT CAPS BACK-SEATED REFRIGERANT VALVE REFRIGERANT SUCTION LINE WITH INSULATION; RE: GENERAL NOTE 2 BELOW. REFRIGERANT LIQUID LINE; RE: GENERAL NOTE 2 BELOW. CONDUIT - POWER AND CONTROL FILTER-DRYER SIGHT GLASS WITH MOISTURE INDICATOR
