The wall panel and wainscot extend upward from the floor panel bearing on an existing floor. A 3 3/4 inch total thickness of tile, grout, and concrete is specified by others over the floor panel. A 1/4 inch layer of leveling sand is placed under the floor assembly. The assembly includes an 8 inch dimension for mandatory backfill by others and a 36 inch wainscot height.

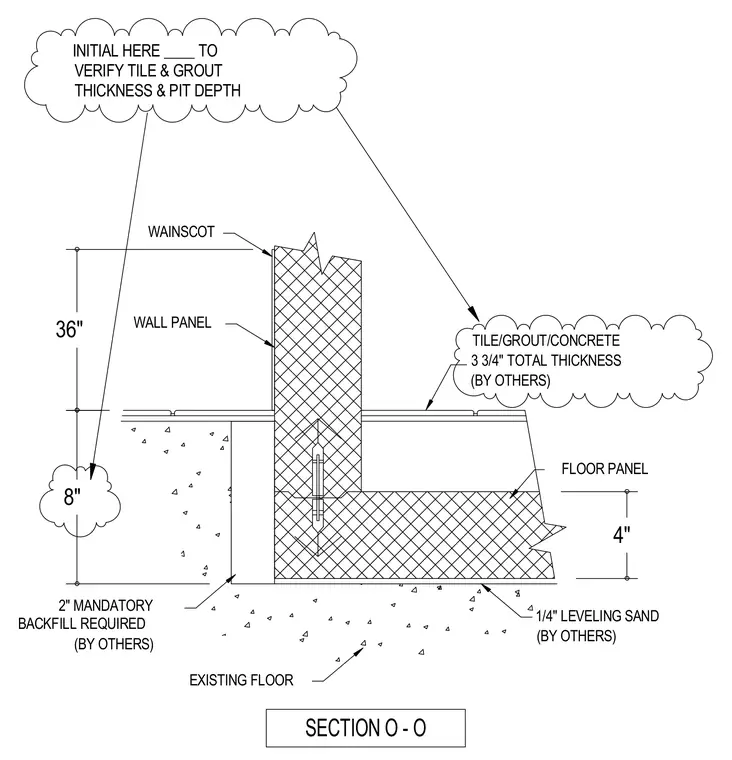

SECTION O - O 8" 4" 36" EXISTING FLOOR WALL PANEL FLOOR PANEL WAINSCOT 2" MANDATORY BACKFILL REQUIRED (BY OTHERS) TILE/GROUT/CONCRETE 3 3/4" TOTAL THICKNESS (BY OTHERS) INITIAL HERE ____ TO VERIFY TILE & GROUT THICKNESS & PIT DEPTH 1/4" LEVELING SAND (BY OTHERS)
