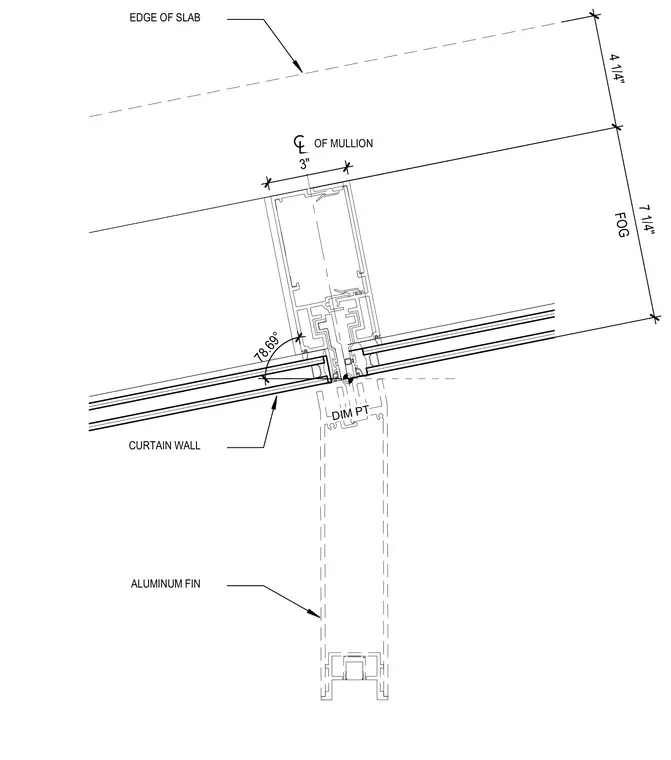

An aluminum curtain wall mullion is detailed at an angled corner of 78.69 degrees, incorporating an exterior aluminum fin. Dimensions locate the centerline of the mullion 3 inches from the exterior edge of the slab, with a 4-1/4 inch dimension to the slab edge and a 7-1/4 inch dimension to face of glass. A specific dimension point is established at the glazing line for layout.
7 8 . 6 9 ° DIM PT OF MULLION EDGE OF SLAB 4 1 / 4 " F O G 7 1 / 4 " CURTAIN WALL ALUMINUM FIN 3 "
