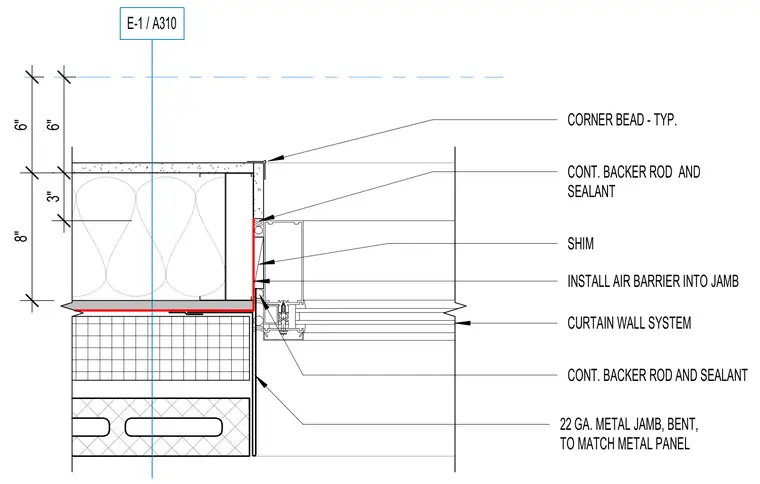

A twenty-two gauge bent metal jamb matches the metal panel curtain wall system with shims providing alignment at the opening. The continuous air barrier extends into the jamb behind the continuous backer rod and sealant joint. A typical corner bead finishes the wall edge adjacent to the framing.
E-1 / A310 22 GA. METAL JAMB, BENT, TO MATCH METAL PANEL CURTAIN WALL SYSTEM SHIM CORNER BEAD - TYP. INSTALL AIR BARRIER INTO JAMB 8" 6" 3" 6" CONT. BACKER ROD AND SEALANT CONT. BACKER ROD AND SEALANT
