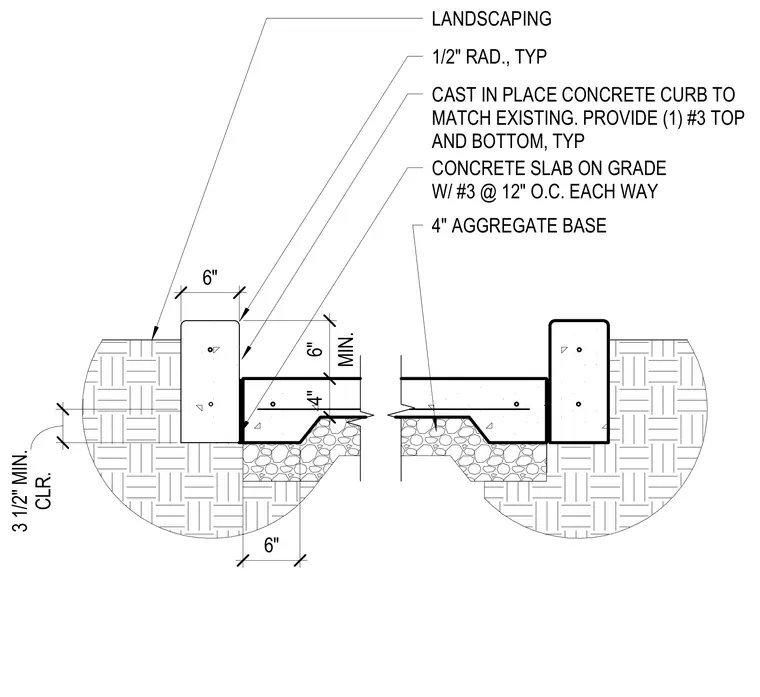

A cast-in-place concrete curb matches existing conditions and features a one-half-inch radius at exposed corners. The curb is reinforced with one number three rebar placed at the top and bottom. A concrete slab on grade is reinforced with number three rebar at twelve inches on center each way. The slab bears on a four-inch aggregate base layer with three and a half inches minimum clearance.
LANDSCAPING 1/2" RAD., TYP CAST IN PLACE CONCRETE CURB TO MATCH EXISTING. PROVIDE (1) #3 TOP AND BOTTOM, TYP CONCRETE SLAB ON GRADE W/ #3 @ 12" O.C. EACH WAY 4" AGGREGATE BASE 6" CLR. 3 1/2" MIN. 6" 4" MIN. 6"
