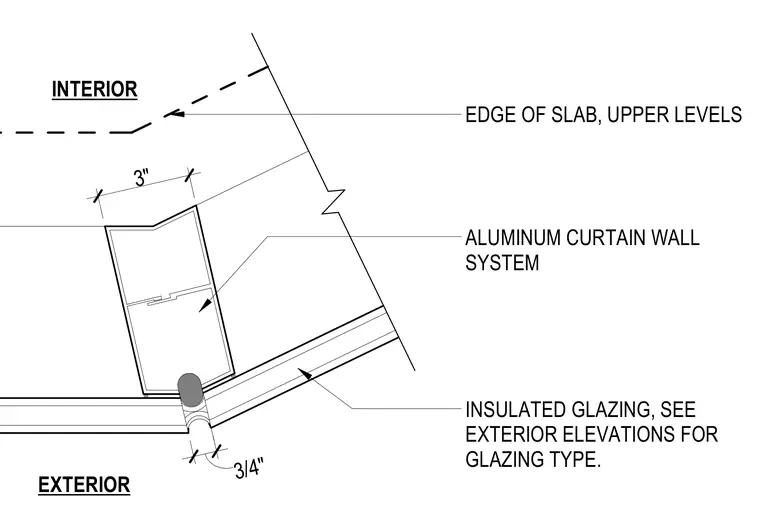

An aluminum curtain wall system wraps the building corner with insulated glazing units joined at a vertical mullion. The exterior glass panels meet at a three-quarter-inch joint, while the interior corner mullion sits three inches off the edge of slab at the upper levels. Glazing types are specified on the exterior elevations.
EDGE OF SLAB, UPPER LEVELS INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. ALUMINUM CURTAIN WALL SYSTEM EXTERIOR INTERIOR 3/4" 3"
