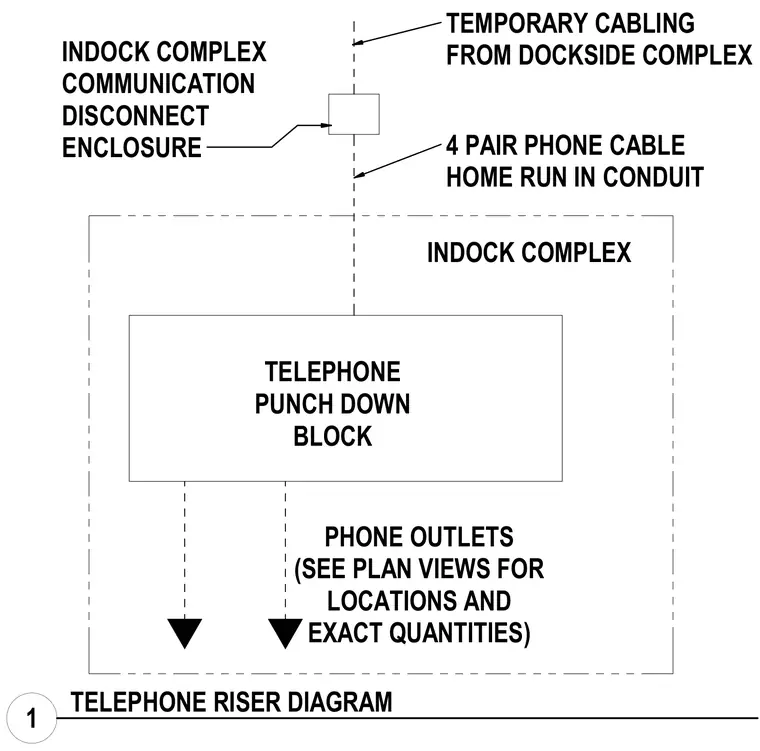

Temporary cabling originates from the dockside complex and routes through a communication disconnect enclosure. A four-pair phone cable runs in conduit from the enclosure into the indock complex to a telephone punch down block. From the punch down block, lines distribute to phone outlets located per the plan views.
TELEPHONE PUNCH DOWN BLOCK PHONE OUTLETS (SEE PLAN VIEWS FOR LOCATIONS AND EXACT QUANTITIES) INDOCK COMPLEX INDOCK COMPLEX COMMUNICATION DISCONNECT ENCLOSURE TEMPORARY CABLING FROM DOCKSIDE COMPLEX 4 PAIR PHONE CABLE HOME RUN IN CONDUIT 1 TELEPHONE RISER DIAGRAM
