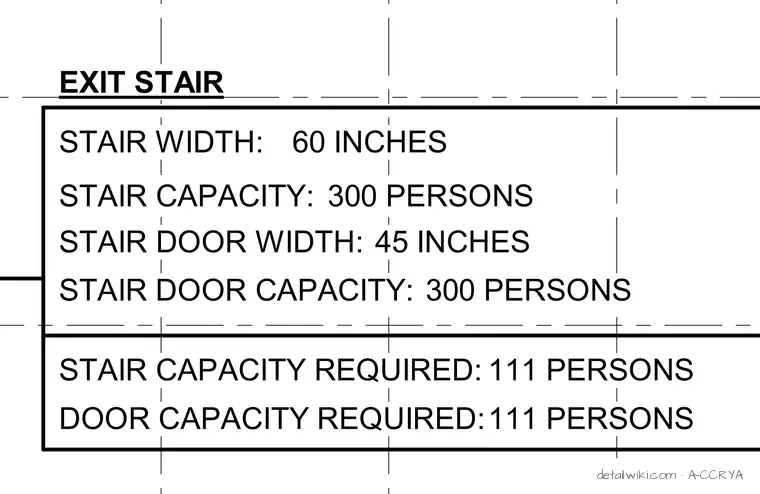

Text on the drawing
EXIT STAIR STAIR WIDTH: STAIR CAPACITY: STAIR DOOR WIDTH: STAIR DOOR CAPACITY: STAIR CAPACITY REQUIRED: DOOR CAPACITY REQUIRED: 300 PERSONS 300 PERSONS 60 INCHES 45 INCHES 111 PERSONS 111 PERSONS
