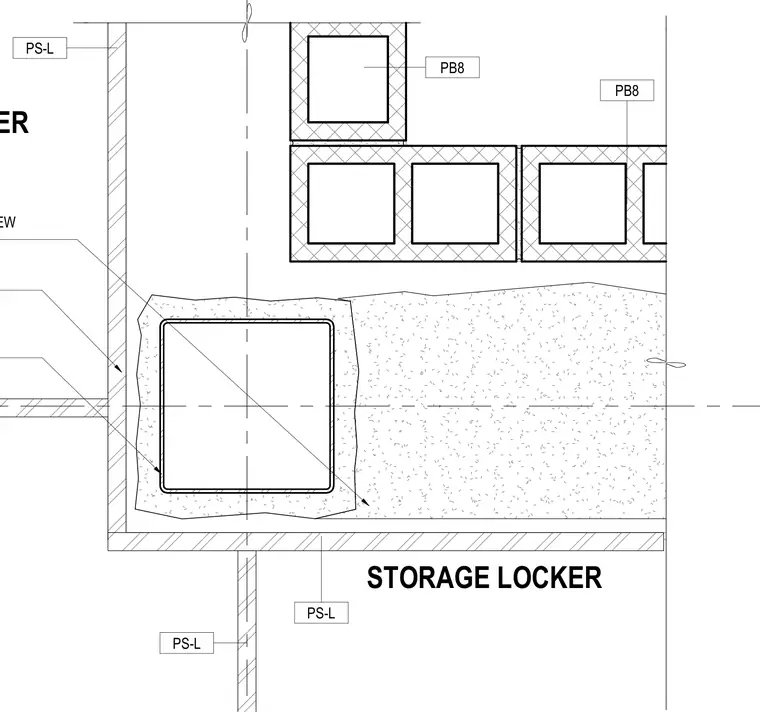

Fireproofing is extended on the cross brace according to code review specifications. The structural column is enclosed with fireproofing material adjacent to storage locker partitions.
PB8 EXTEND FIREPROOFING ON THE CROSS BRACE - SEE CODE REVIEW PS-L PS-L STORAGE LOCKER STORAGE LOCKER PS-L PB8
