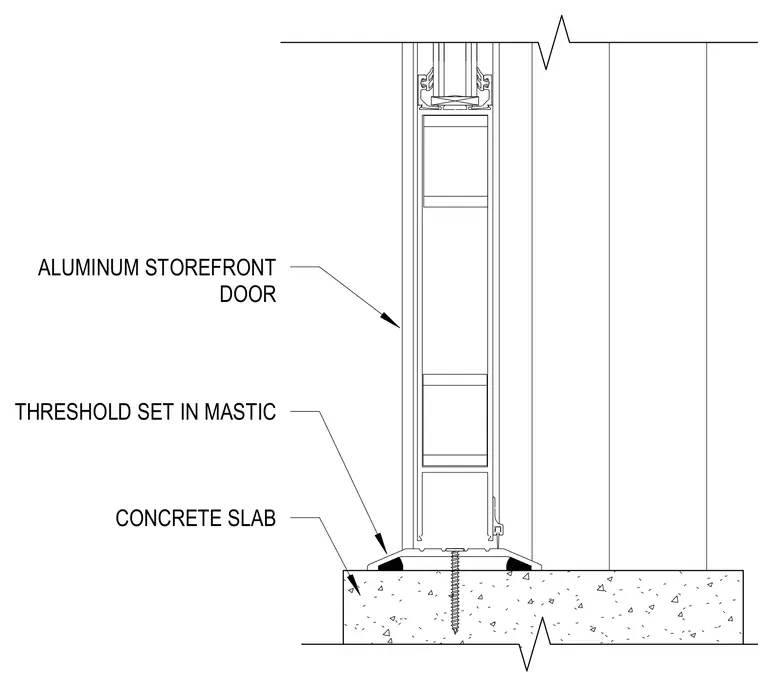

An aluminum storefront door frame rests directly on a structural concrete slab. The metal threshold is set in mastic and secured to the concrete substrate with a concealed anchor fastener.
