Architectural · A-CCQ3Z

Eave - East At North Stairwell

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Stairs Roofs Decks Insulation Roof / Floor Openings

About this detail

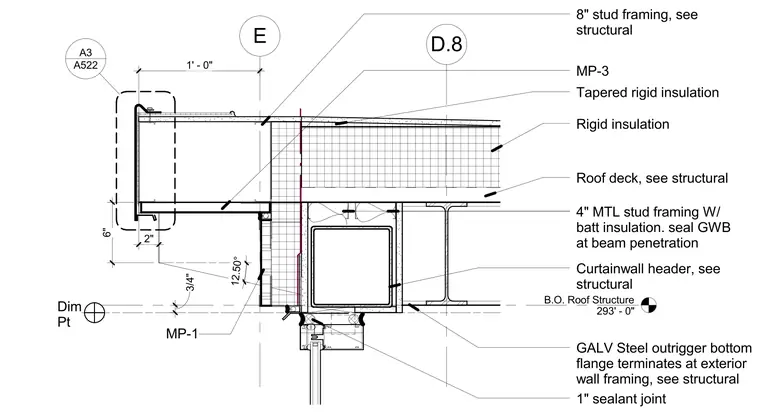

The roof assembly features a roof deck with rigid insulation and tapered rigid insulation, terminating at an eight-inch stud framing condition. A galvanized steel outrigger extends outward, with its bottom flange terminating at the exterior wall framing. Below the roof structure, a curtainwall header is integrated with a four-inch metal stud framing assembly containing batt insulation and gypsum wallboard sealed at the beam penetration. Exterior metal panels MP-1 and MP-3 finish the fascia and soffit zones, complemented by a one-inch sealant joint at the curtainwall interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
