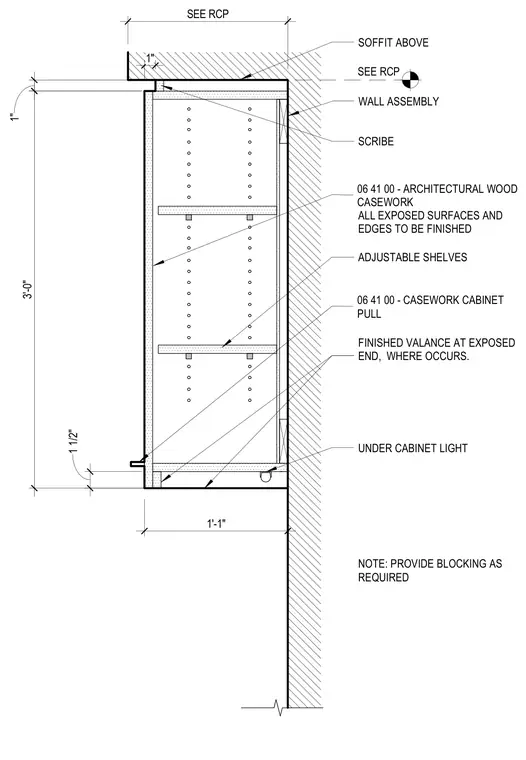

An upper wood casework cabinet mounts against a finished wall assembly with required blocking, featuring adjustable shelving and a 3-foot overall height. The cabinet is detailed with a 1-inch scribe against the wall, a soffit above, and a finished valance at the exposed end where applicable. An under-cabinet light is integrated at the bottom, and cabinet pulls are provided on doors or drawers. All exposed surfaces and edges are specified to be finished in accordance with architectural wood casework standards.
FINISHED VALANCE AT EXPOSED END, WHERE OCCURS. UNDER CABINET LIGHT SEE RCP ADJUSTABLE SHELVES 1 1/2" 3'-0" SOFFIT ABOVE SCRIBE 1" 1" WALL ASSEMBLY SEE RCP 06 41 00 - ARCHITECTURAL WOOD CASEWORK 06 41 00 - CASEWORK CABINET PULL ALL EXPOSED SURFACES AND EDGES TO BE FINISHED NOTE: PROVIDE BLOCKING AS REQUIRED 1'-1"
