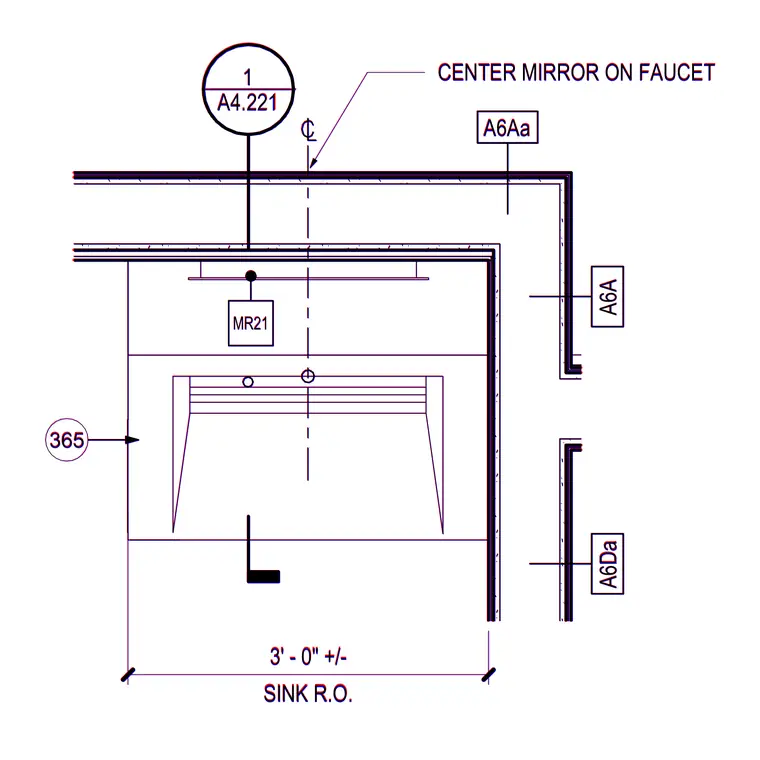

The mirror centerline aligns directly with the faucet centerline above a vanity sink rough opening dimensioned at three feet plus or minus one inch. The layout maintains symmetrical spacing within the wall assembly.
SINK R.O. 3' - 0" +/- 1 A4.221 ________ ________ MR21 A6Aa A6A A6Da CENTER MIRROR ON FAUCET 365 SINK R.O. 3' - 0" +/- 1 A4.221 ________ ________ MR21 A6Aa A6A A6Da CENTER MIRROR ON FAUCET 365
