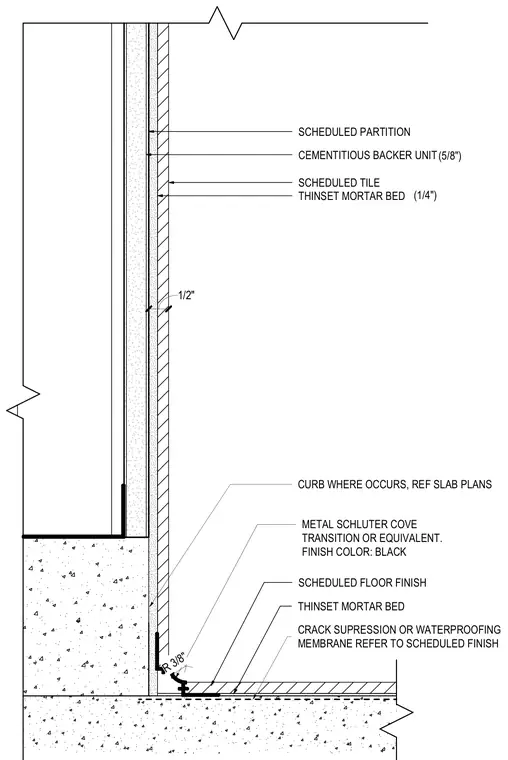

A scheduled tile finish is adhered over a one-quarter-inch thinset mortar bed and a five-eighths-inch cementitious backer unit attached to a scheduled partition. A crack suppression or waterproofing membrane is applied beneath the scheduled floor finish and thinset mortar bed at the floor slab. A metal cove transition profile with a black finish and three-eighths-inch radius is installed at the intersection between the wall tile and floor finish. A concrete curb occurs at the base where specified per slab plans.
SCHEDULED TILE SCHEDULED PARTITION THINSET MORTAR BED CEMENTITIOUS BACKER UNIT CRACK SUPRESSION OR WATERPROOFING MEMBRANE REFER TO SCHEDULED FINISH 1/2" SCHEDULED FLOOR FINISH THINSET MORTAR BED CURB WHERE OCCURS, REF SLAB PLANS (5/8") METAL SCHLUTER COVE TRANSITION OR EQUIVALENT. FINISH COLOR: BLACK (1/4") R 3/8"
