Structural · A-CCBWT

2 Adjacent Webs For 12" Module Deck

Materials

Elements

Beams Ceilings Decks Reinforcing Roof / Floor Openings

About this detail

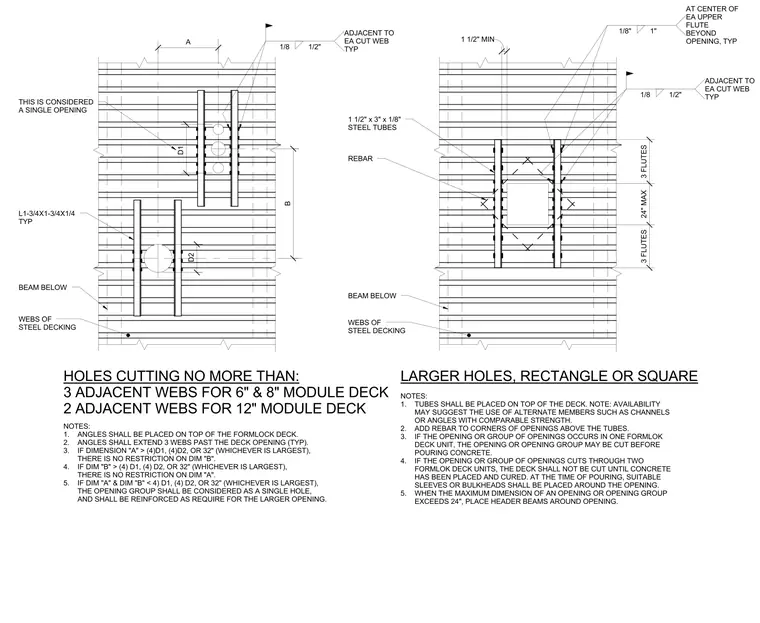

Framing reinforcement for openings cut into steel deck and concrete floor assemblies. L-shaped angles measuring 1-3/4 by 1-3/4 by 1/4 inches or 1-1/2 by 3 by 1/8 inch steel tubes are placed on top of the formlok deck spanning across the cut webs. Additional rebar is added to the corners of the openings above the tubes for structural support. Notes govern cutting restrictions based on module deck sizes and require sleeves or bulkheads for multi-deck unit penetrations.
