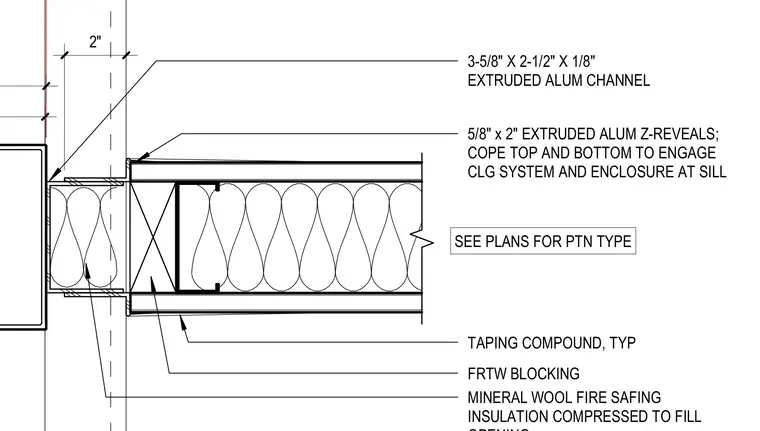

An extruded aluminum channel measuring 3-5/8 inches by 2-1/2 inches by 1/8 inch anchors the assembly at the sill. Fire safing mineral wool insulation is compressed to fill the perimeter opening. Extruded aluminum Z-reveals measuring 5/8 inch by 2 inches are coped at the top and bottom to engage the ceiling system and enclosure. Fire-retardant treated wood blocking provides internal backing, finished with typical taping compound.
3-5/8" X 2-1/2" X 1/8" EXTRUDED ALUM CHANNEL MINERAL WOOL FIRE SAFING INSULATION COMPRESSED TO FILL 5/8" x 2" EXTRUDED ALUM Z-REVEALS; COPE TOP AND BOTTOM TO ENGAGE CLG SYSTEM AND ENCLOSURE AT SILL FRTW BLOCKING 2" TAPING COMPOUND, TYP SEE PLANS FOR PTN TYPE
