Architectural · A-CC8Z8

Fire Extinguisher Cabinet Mounting at Concrete Column

Materials

Concrete

Elements

Columns Railings / Guards Foundations / Footings Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

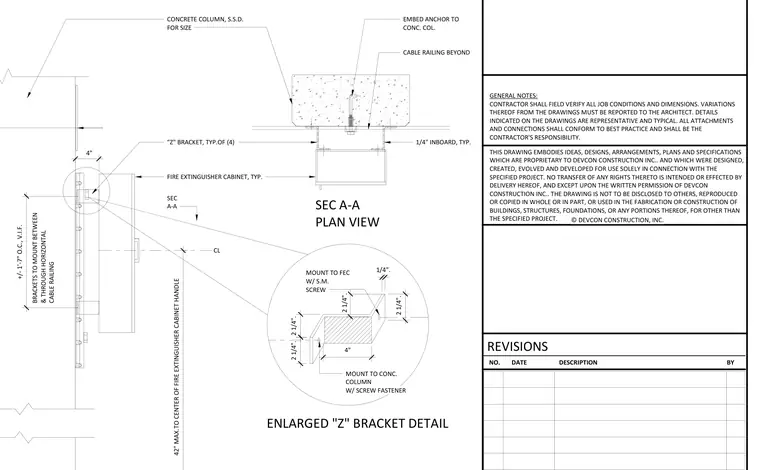

The fire extinguisher cabinet is set one-quarter inch inboard and mounted to a concrete column using a typical set of four Z-brackets. The brackets mount to the concrete column with screw fasteners and attach to the fire extinguisher cabinet using sheet metal screws. The assembly positions the cabinet handle at a maximum of forty-two inches above the floor, with intermediate mounting brackets spaced at approximately one foot seven inches on center through the adjacent horizontal cable railing. An embed anchor secures the concrete column connection, and the cable railing runs parallel just beyond the cabinet boundary.
