Beam to Column Connection at Grid 11

Materials

weld

Elements

Columns Beams

Connections

Welded Connection Bolted Connection

About this detail

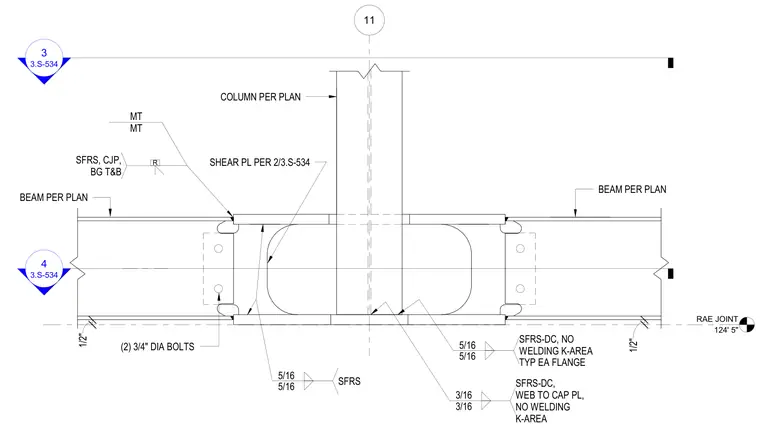

A structural steel beam frames into a column via a shear plate connection alongside seismic force-resisting system designations. The beams and column are sized per plan, with specific plate connections and weld requirements designated at the flanges and web. Five-sixteenths-inch fillet welds are specified at the shear plates and designated seismic force-resisting system locations, with restrictions against welding in the column K-area on both flanges and the web-to-cap plate. Two three-quarter-inch diameter bolts provide supplementary mechanical connection where indicated on the framing. Clearances of one-half inch are maintained at the joint interfaces.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
