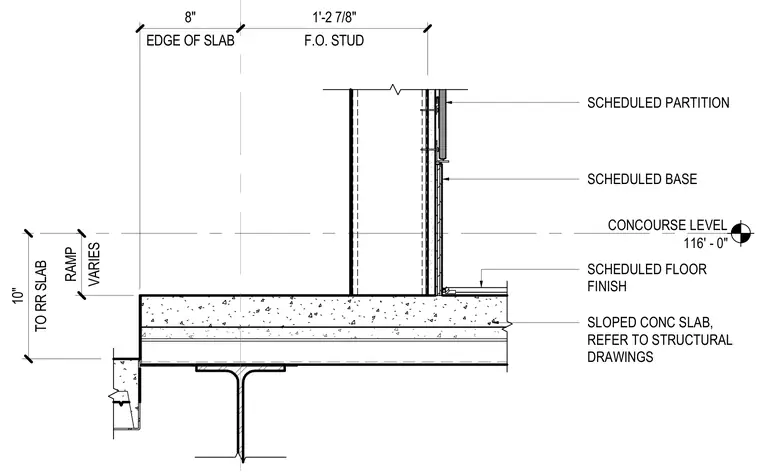

A sloped concrete slab bears over a structural framing member with a varying ramp thickness measuring ten inches to the recess slab. A scheduled partition sits atop the concrete floor slab with the face of stud offset one foot two and seven-eighths inches from the edge of slab. The assembly features a scheduled base and scheduled floor finish over the slab. Dimensions locate the edge of slab eight inches from the primary grid line.
CONCOURSE LEVEL 116' - 0" EDGE OF SLAB 8" VARIES RAMP F.O. STUD 1'-2 7/8" TO RR SLAB 10" SLOPED CONC SLAB, REFER TO STRUCTURAL DRAWINGS SCHEDULED PARTITION SCHEDULED BASE SCHEDULED FLOOR FINISH
