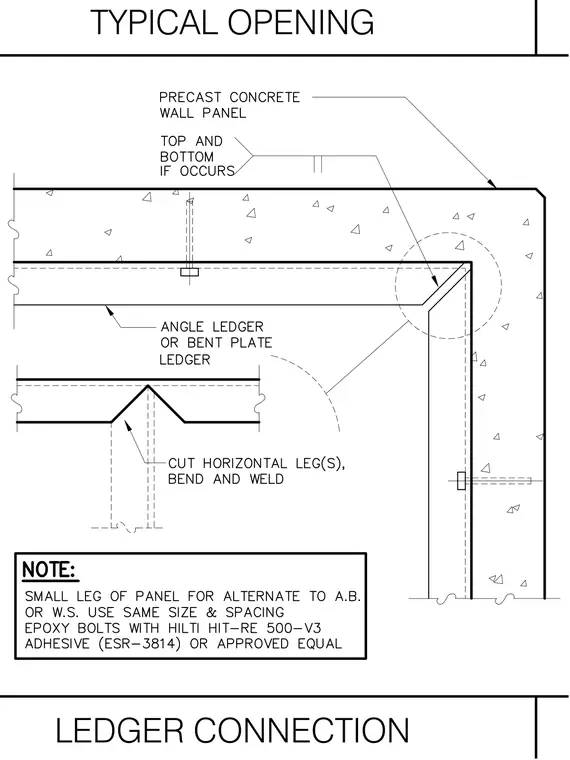

An angle ledger or bent plate ledger supports structural loads at a precast concrete wall panel opening. The horizontal leg of the angle ledger is cut, bent, and welded at the opening corner where panels meet. Epoxy bolts using Hilti HIT-RE 500-V3 adhesive secure the assembly to the precast concrete panels.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
