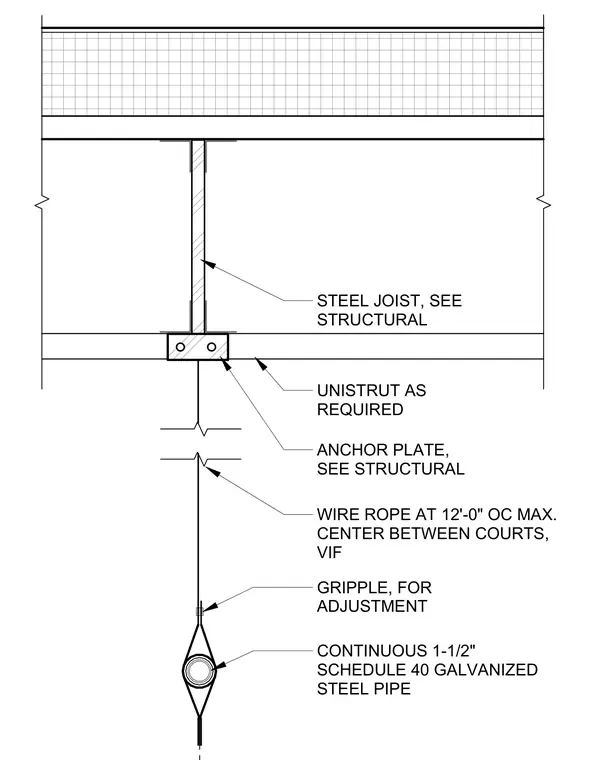

A continuous one-and-a-half-inch Schedule 40 galvanized steel pipe is suspended by wire rope spaced at a maximum of twelve feet on center, centered between courts, and verified in field. The wire rope extends upward to a Gripple fastener used for vertical adjustment. The upper termination secures to an anchor plate and a continuous Unistrut channel attached beneath a steel joist.
WIRE ROPE AT 12'-0" OC MAX. CENTER BETWEEN COURTS, VIF UNISTRUT AS REQUIRED CONTINUOUS 1-1/2" SCHEDULE 40 GALVANIZED STEEL PIPE GRIPPLE, FOR ADJUSTMENT ANCHOR PLATE, SEE STRUCTURAL STEEL JOIST, SEE STRUCTURAL
