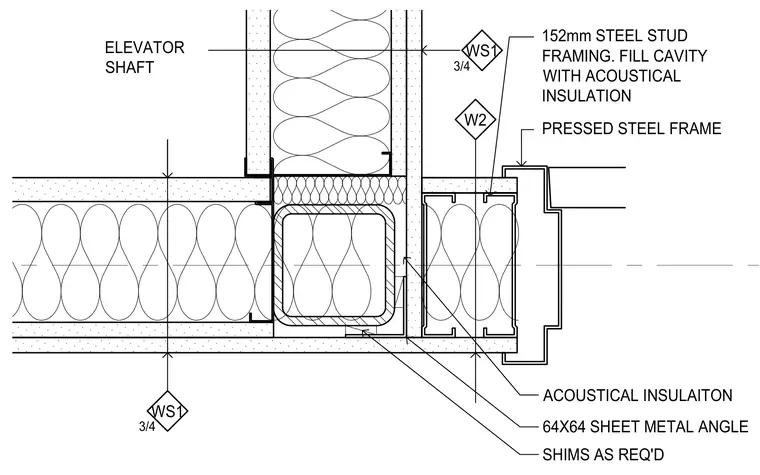

An elevator shaft partition wall abuts a 152-millimeter steel stud framing assembly with a pressed steel frame. A 64x64 sheet metal angle provides connection support with shims as required for alignment. Acoustical insulation fills the stud cavity to reduce sound transmission across the partition boundary.
3/4 WS1 152mm STEEL STUD FRAMING. FILL CAVITY WITH ACOUSTICAL INSULATION 3/4 WS1 ELEVATOR SHAFT W2 64X64 SHEET METAL ANGLE SHIMS AS REQ'D ACOUSTICAL INSULAITON PRESSED STEEL FRAME
