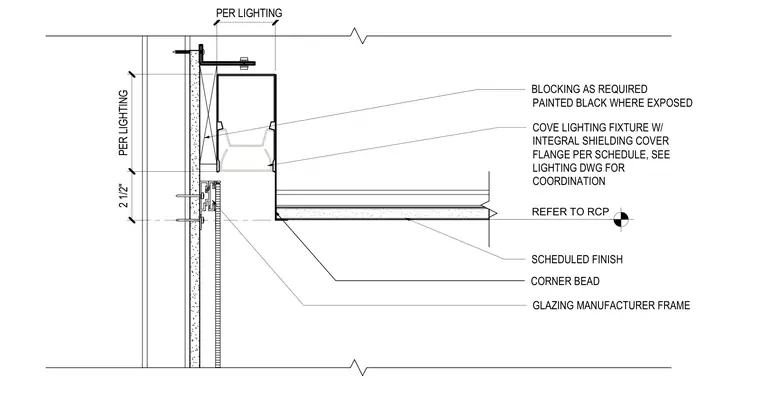

This interior architectural detail shows a cove lighting fixture with an integral shielding cover integrated into an accent wall adjacent to a glazing system. The cove fixture features a flange per schedule and is secured to wood blocking with fasteners as required. A glazing manufacturer frame is fastened to the wall assembly below the light fixture, complete with a corner bead and scheduled interior finishes. Exposed elements are painted black.
COVE LIGHTING FIXTURE W/ INTEGRAL SHIELDING COVER FLANGE PER SCHEDULE, SEE LIGHTING DWG FOR COORDINATION PER LIGHTING 2 1/2" PER LIGHTING REFER TO RCP BLOCKING AS REQUIRED SCHEDULED FINISH CORNER BEAD GLAZING MANUFACTURER FRAME PAINTED BLACK WHERE EXPOSED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
