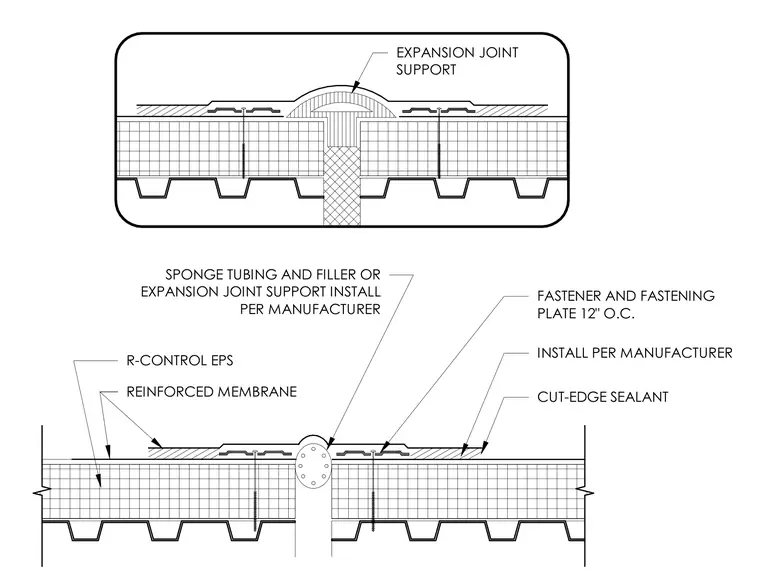

An expansion joint assembly spans across structural gaps on an insulated deck utilizing R-Control EPS insulation over metal decking. A central expansion joint support or sponge tubing and filler material bridges the gap, flanked by a reinforced membrane sealed at the edges with cut-edge sealant. Fasteners and fastening plates secure the membrane layers at twelve inches on center.
EXPANSION JOINT SUPPORT SPONGE TUBING AND FILLER OR EXPANSION JOINT SUPPORT INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE 12" O.C. INSTALL PER MANUFACTURER CUT-EDGE SEALANT R-CONTROL EPS REINFORCED MEMBRANE
