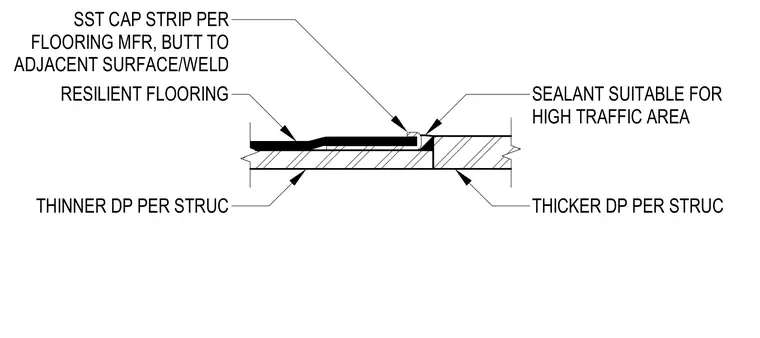

Resilient flooring terminates at a stainless steel cap strip per the flooring manufacturer, butt-welded to the adjacent surface. A traffic-rated sealant fills the joint between the resilient flooring over a thinner depression and the adjacent thicker flooring assembly.
RESILIENT FLOORING THINNER DP PER STRUC SST CAP STRIP PER FLOORING MFR, BUTT TO ADJACENT SURFACE/WELD THICKER DP PER STRUC SEALANT SUITABLE FOR HIGH TRAFFIC AREA
