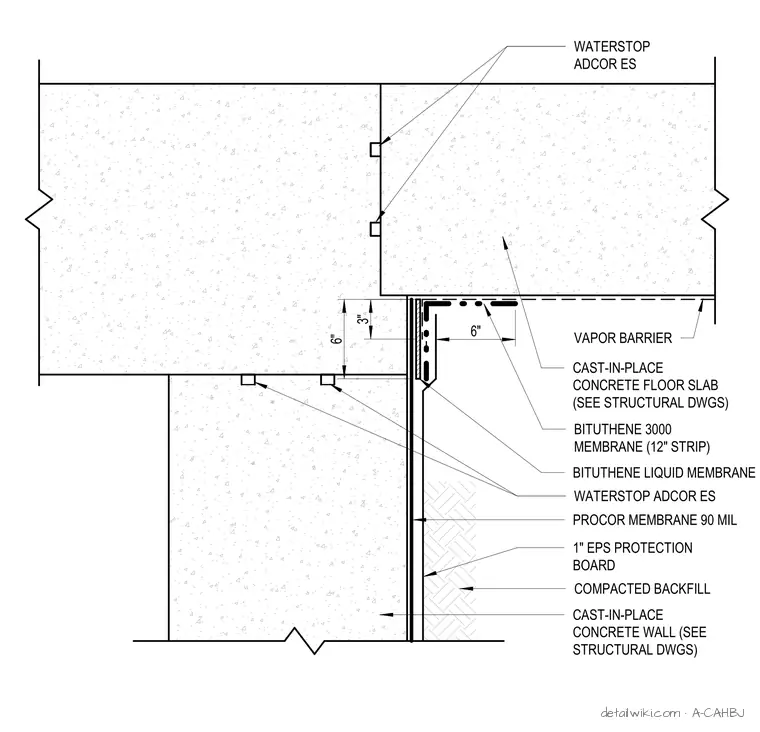

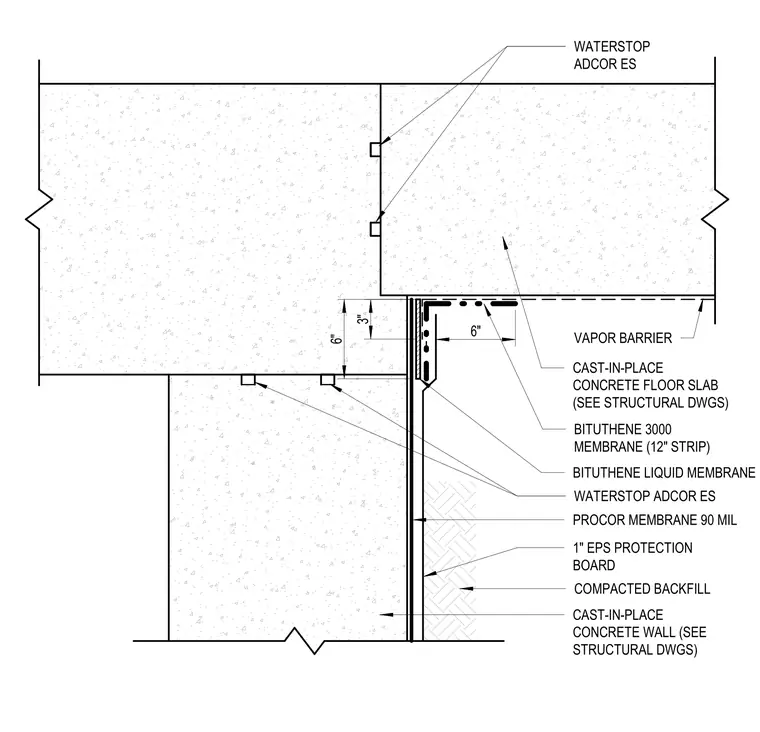

A-CAHBJ — Typical Slab To Floor Slab Waterproofing Detail

Architectural · A-CAHBJ

Typical Slab To Floor Slab Waterproofing Detail

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A543
Discipline: Architectural

Materials

Elements

Walls Floors / Slabs Waterproofing / Flashing Insulation

Text on the drawing

WATERSTOP ADCOR ES COMPACTED BACKFILL PROCOR MEMBRANE 90 MIL CAST-IN-PLACE CONCRETE WALL (SEE STRUCTURAL DWGS) 1" EPS PROTECTION BOARD CAST-IN-PLACE CONCRETE FLOOR SLAB (SEE STRUCTURAL DWGS) BITUTHENE LIQUID MEMBRANE VAPOR BARRIER BITUTHENE 3000 MEMBRANE (12" STRIP) WATERSTOP ADCOR ES 6" 3" 6"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
