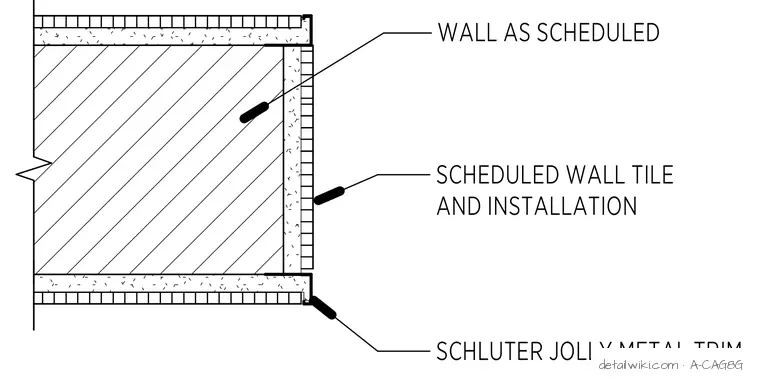

This wall termination detail shows a wall assembly as scheduled, finished with ceramic wall tile and installation materials. The exposed vertical edge of the tile is protected and finished with a Schluter Jolly metal trim profile. The trim provides a clean, finished edge where the tile meets the adjacent wall surface.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
