An interior millwork assembly comprises upper cubby shelving with three-quarter-inch fixed shelves spanning between vertical partitions spaced per elevation. All exposed surfaces are finished with plastic laminate. A void space is located beyond the cubby compartments to reduce the overall depth. The assembly is dimensioned with one-foot depths for the open compartments and equal spacing divisions.

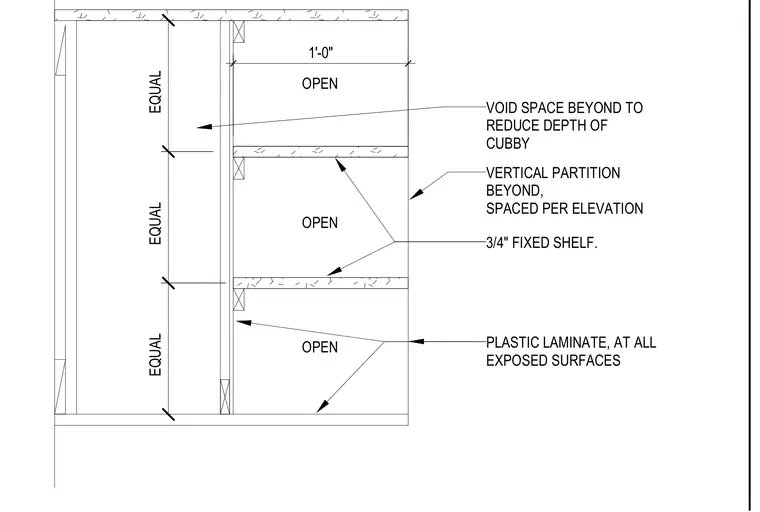

VOID SPACE BEYOND TO REDUCE DEPTH OF CUBBY VERTICAL PARTITION BEYOND, SPACED PER ELEVATION OPEN OPEN OPEN 3/4" FIXED SHELF. PLASTIC LAMINATE, AT ALL EXPOSED SURFACES EQUAL EQUAL EQUAL 1'-0"
