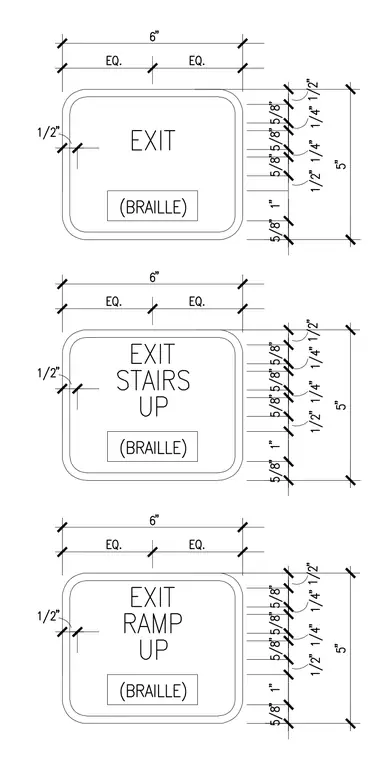

Tactile exit signs feature rounded rectangular plaques measuring 6 inches wide by 5 inches high with engraved text and integrated braille text blocks. The top sign displays the word EXIT, the middle sign reads EXIT STAIRS UP, and the bottom sign reads EXIT RAMP UP. Detailed dimensional callouts establish the positioning of text lines, line spacing, margins, and braille cell locations.
