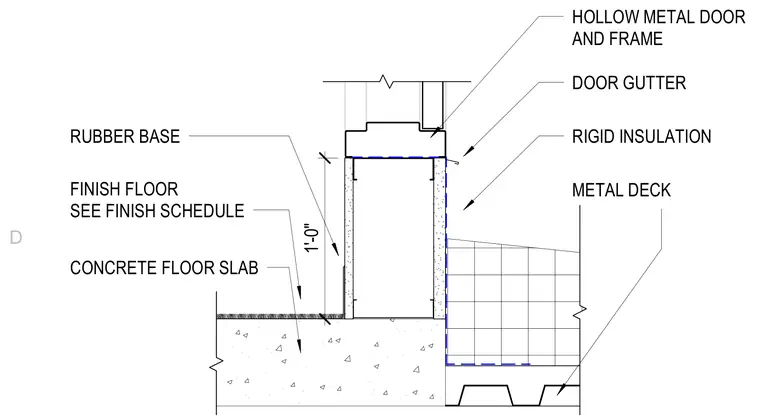

A hollow metal door and frame set above a concrete floor slab with a rubber base. A door gutter is integrated adjacent to the frame at the roof level. Rigid insulation bears over a metal deck abutting the interior floor construction.
1'-0" FINISH FLOOR SEE FINISH SCHEDULE DOOR GUTTER RIGID INSULATION HOLLOW METAL DOOR AND FRAME CONCRETE FLOOR SLAB METAL DECK RUBBER BASE D
