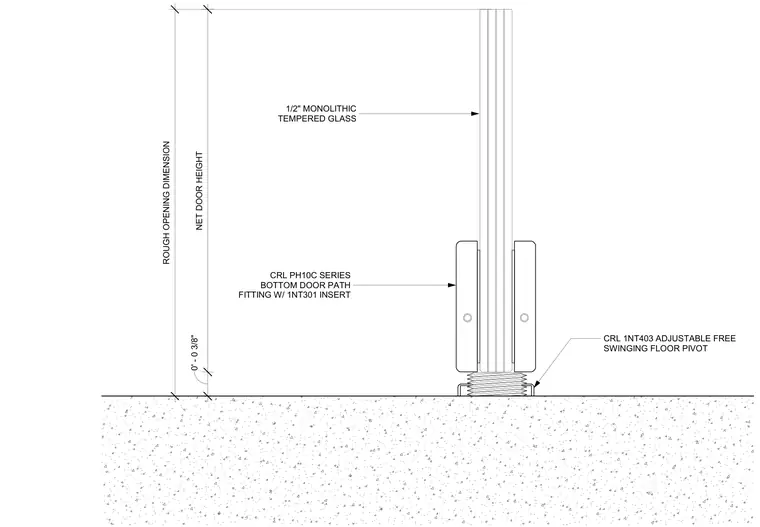

This assembly details a glass door sill condition using a half-inch monolithic tempered glass panel mounted in a CRL PH10C series bottom door patch fitting with an 1NT301 insert. The patch fitting engages a CRL 1NT403 adjustable free swinging floor pivot anchored into the concrete floor slab. Vertical dimensions indicate a net door height and rough opening dimension with a three-eighths inch clearance at the threshold.
1/2" MONOLITHIC TEMPERED GLASS CRL PH10C SERIES BOTTOM DOOR PATH FITTING W/ 1NT301 INSERT 0' - 0 3/8" NET DOOR HEIGHT ROUGH OPENING DIMENSION CRL 1NT403 ADJUSTABLE FREE SWINGING FLOOR PIVOT
