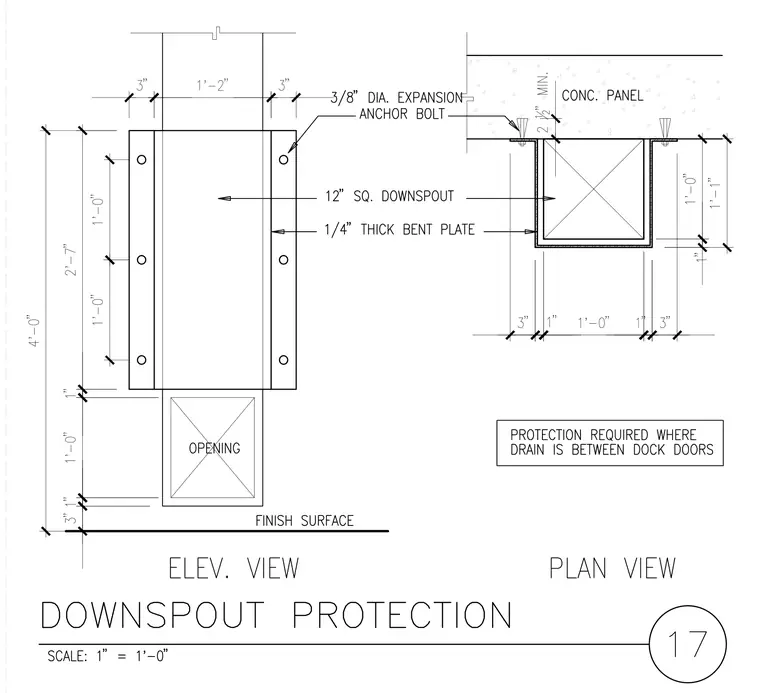

A twelve-inch square downspout is protected by a quarter-inch thick bent steel plate mounted to a concrete panel wall. The assembly is secured using three-eighths-inch diameter expansion anchor bolts placed through the bent plate flanges. A note indicates that protection is required where the drain is located between dock doors.
