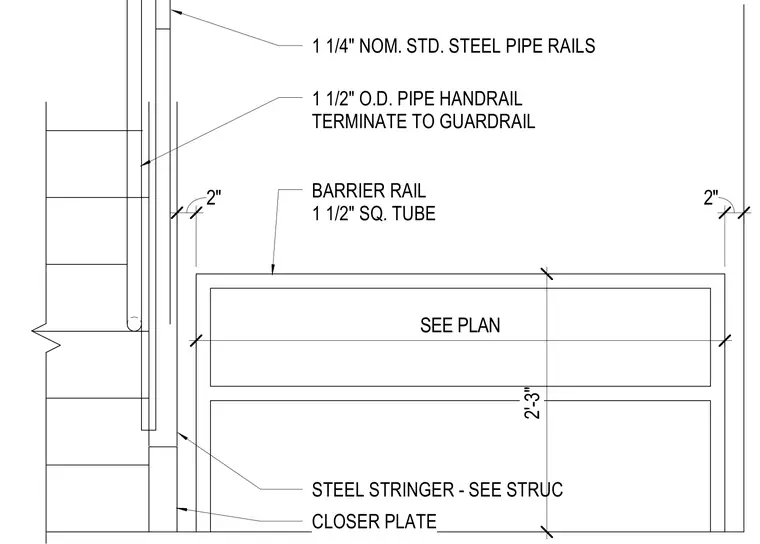

A 1 1/2-inch square tube barrier rail mounts above a steel stringer with a closure plate. A 1 1/2-inch outside diameter pipe handrail terminates directly into the guardrail assembly. Additional 1 1/4-inch nominal standard steel pipe rails are positioned per plan. Dimensions include a 2-foot 3-inch height clearance and 2-inch spacing increments.
STEEL STRINGER - SEE STRUC CLOSER PLATE BARRIER RAIL 1 1/2" SQ. TUBE 2" 2" 2'-3" 1 1/2" O.D. PIPE HANDRAIL TERMINATE TO GUARDRAIL 1 1/4" NOM. STD. STEEL PIPE RAILS SEE PLAN
