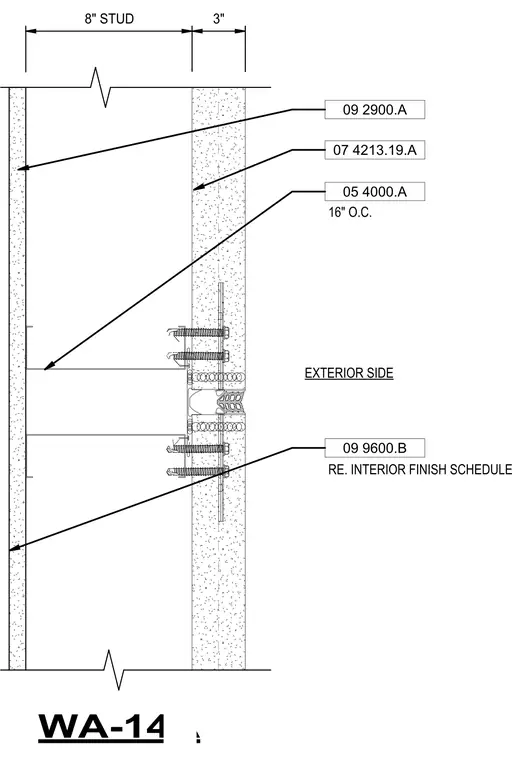

This wall assembly features an eight-inch stud frame spaced at sixteen inches on center. The exterior side is finished with specified cladding materials referenced by CSI masterformat codes 07 4213.19.A and 09 2900.A. The structural framing is identified by code 05 4000.A. Interior finishes are applied per the interior finish schedule referenced by code 09 9600.B.
