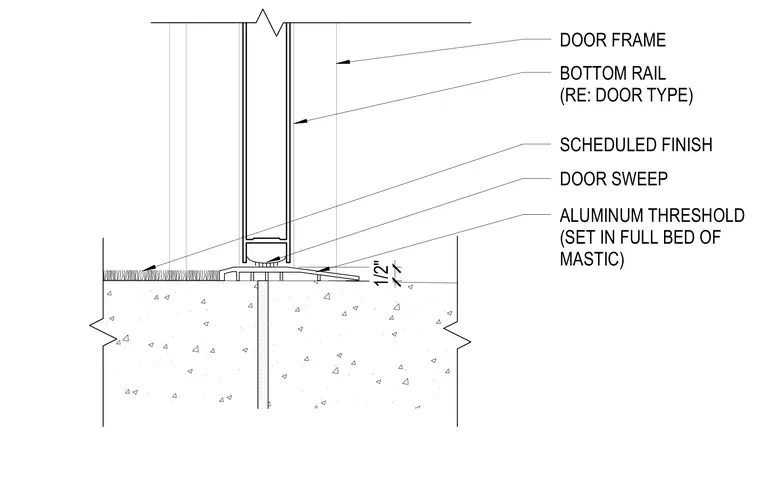

An aluminum threshold set in a full bed of mastic sits on the subfloor assembly beneath an aluminum door frame and door bottom rail. A door sweep mounts to the bottom rail to seal against the threshold. A one-half-inch finish dimension coordinates the transition.
DOOR SWEEP BOTTOM RAIL (RE: DOOR TYPE) ALUMINUM THRESHOLD (SET IN FULL BED OF MASTIC) DOOR FRAME 1/2" SCHEDULED FINISH
