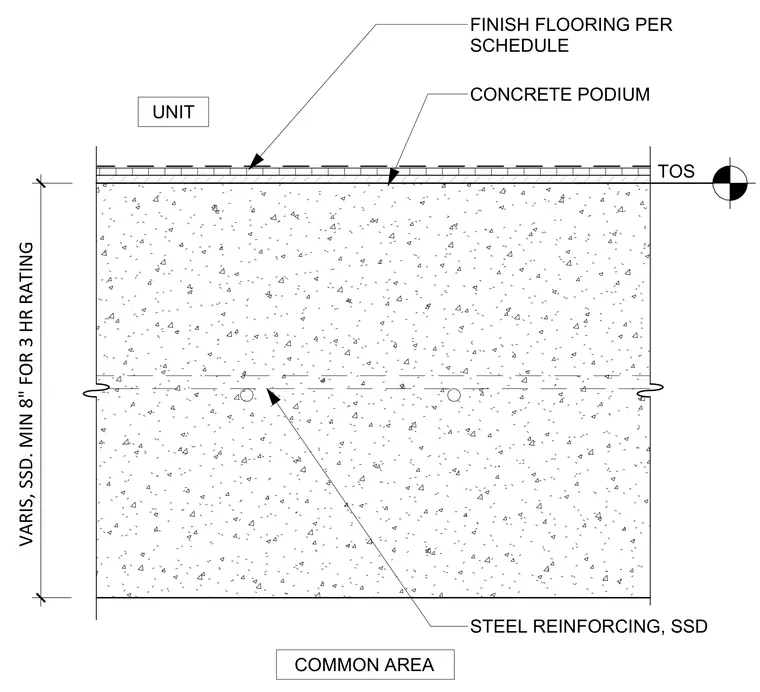

A concrete podium slab carries finish flooring per schedule over its top surface, noted as TOS with an elevation marker. The slab incorporates steel reinforcing designated as SSD. A vertical dimension indicates a variable thickness with a minimum of eight inches required to achieve a three-hour fire rating separating a unit from a common area.
VARIS, SSD. MIN 8" FOR 3 HR RATING UNIT COMMON AREA FINISH FLOORING PER SCHEDULE CONCRETE PODIUM STEEL REINFORCING, SSD TOS
