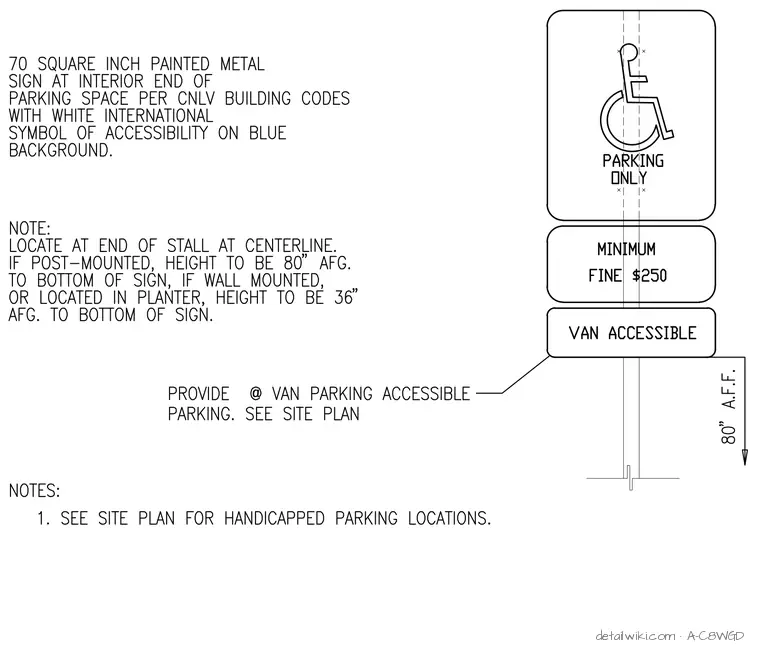

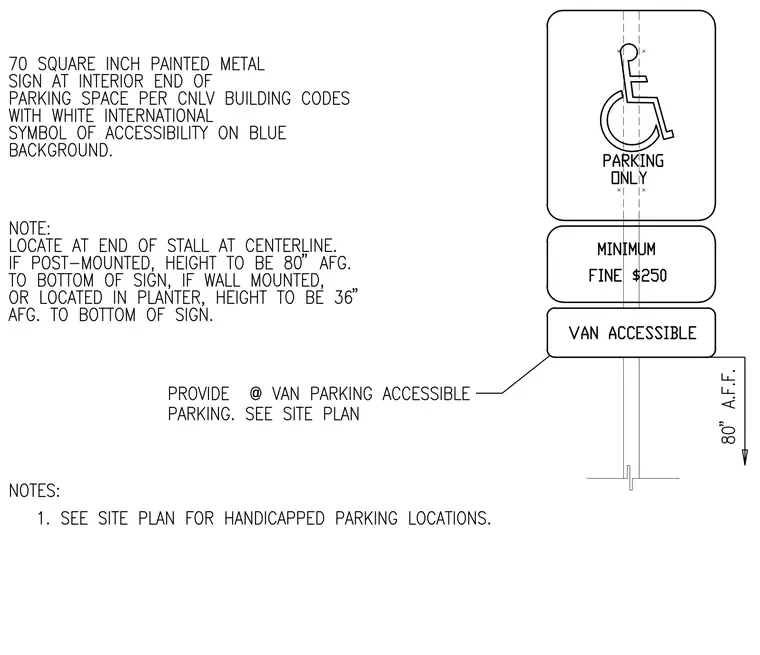

The assembly consists of a seventy square inch painted metal sign featuring the white international symbol of accessibility on a blue background, accompanied by supplemental 'Minimum Fine $250' and 'Van Accessible' plaques. The sign is centered at the end of the parking stall. For post-mounted installations, the bottom of the sign is positioned at eighty inches above finished grade, while wall-mounted or planter-mounted signs are set at thirty-six inches above finished grade.
